XLCT Low Profile Wrench

Thin design, made of high-strength aluminum-titanium alloy materialSnap-on and interchangeable plug-ins, one power head can be used with a variety of work headsNew flat design suitable for narrow working conditions

Category:

Hydraulic series

E-mail:

Shenoah@smgtorcwrench.com

Message

Introduction

XLCT low profile wrench

High resistance with aluminium-titanium and light body
700 bar maximum operation pressure
Repeatability of ± 3%
Torsion retaining ratchet system
360° x 180° multi-positional swivel quick release couplings
Interchangeable cassettes with small head radius
Suitable for continuous operation at maximum pressure
Pressure relief valve prevents over pressure

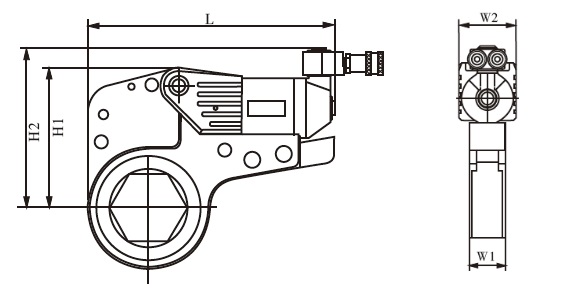

Model	2XLCT	4XLCT	8XLCT	14XLCT	18XLCT	30XLCT
Min (Nm)	250	500	1000	1720	2700	4000
Max (Nm)	2500	5400	10500	17900	27000	40500
Repeatability	+/- 3%	+/- 3%	+/- 3%	+/- 3%	+/- 3%	+/- 3%
Weight (Kg)	2.2	5	9.6	16.9	22.9	38
L (mm)	205	251.3	302.5	367	400.5	457.5
L1 (mm)	147	188	233	283	308	364
H1 (mm)	129	163	191	223	246	282
H2 (mm)	100	136	166.5	198	224	265
W1(mm)	32	41	53	64	70	84
W2(mm)	50	66	83	99	110	132
R (mm)	41.3	53.8	68.8	85.3	98.8	115.8
Link S(mm)	27-50	27-65	50-90	85-115	95-135	00-155
R (mm)	25.8	34.8	39.8	46.8	50.8	56.8
