SMG turning gear series

Keyword:

Summary:Winding-up operation is an operation or device that makes the rotor rotate in a certain way before the start-up of rotating machinery (such as steam turbines, generators, large electric motors, etc.) or after the shutdown. Its main function is to prevent the rotor from bending due to uneven heating or cooling, and it also helps to check the condition of internal components of the equipment, providing a guarantee for the normal start-up and safe operation of the equipment.

Category:

Turning gear

E-mail:

Shenoah@smgtorcwrench.com

Message

Introduction

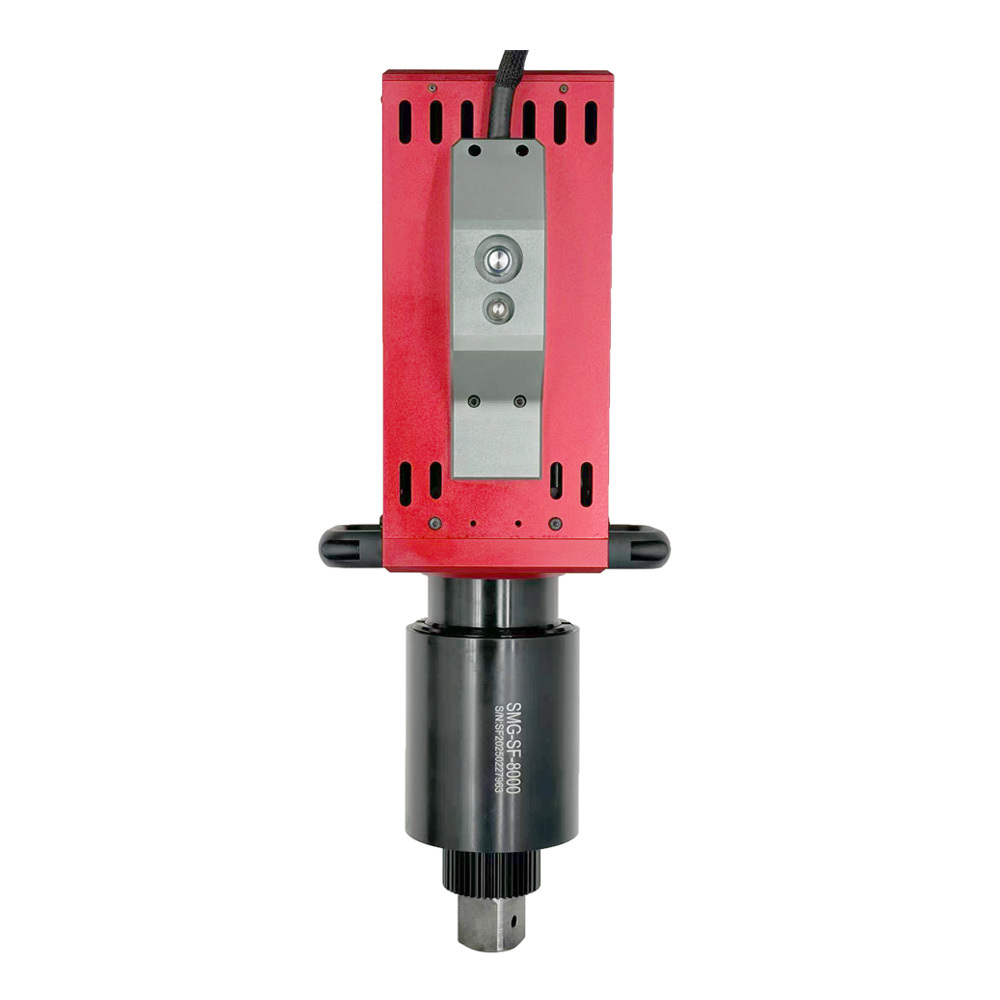

　　Shanghai SMG Intelligent Technology Co., Ltd. uses advanced servo drive integrated machine with independent intellectual property rights, and intelligent drive with independent intellectual property rights as the power to manufacture the disc car.

　　Mainly used for the maintenance, assembly, and commissioning of thermal power generators, wind turbines,hydroelectric generators, engines, etc. that replace the use of power sources. Our product has the advantages of being lightweight, easy to install, and easy to operate, replacing the original bulky and heavy disc trucks.

Function

　　1. Arbitrary torque setting: Adjust the torque to 1Nm to increase or decrease

　　2. Gear adjustment: intelligent programming, can set N gears of commonly used torque values, convenient and fast operation

　　3. Precision torque control: Built in sensor closed-loop control. Torque accuracy ± 5%, repeatability accuracy ±2%

　　4. Digital display: Real time display of torque, speed, and number of turns

　　5. Fault alarm: motor overheating alarm, system fault alarm, operation error alarm

　　6. Internet of Things: optional Bluetooth module or WIFI module, torque gateway system, supporting control of upper computer and integration of MES management system through the Internet of Things

　　7. Emergency parking function: Convenient and concise power-off parking in emergency situations

　　8. Upper limit torque automatic parking function: When the actual upper limit torque is exceeded, the system will set the automatic parking function

　　9. Rotation angle control function: can freely set the rotation angle and control of the turning gear

　　10. Installation size design: can be designed according to the installation size of different models of customers

Product parameters

Model	A (mm)	B (mm)	C (mm)	Quadrlateral axis (")	E (mm)	F (mm)	G (mm)	H (mm)	Min.torque (N.M)	Max.torque (N.M)	Speed (rpm)	Weight (kg)
SMG-SF-2000	405	230	80	1	×	×	×	×	100	2000	7 (customizable)	7.5
SMG-SF-3000	410	230	94	1	×	×	×	×	150	3000	5 (customizable)	10.2
SMG-SF-4000	420	230	98	1 1/2	×	×	×	×	200	4000	3.5 (customizable)	11.5
SMG-SF-6000	435	230	105	1 1/2	×	×	×	×	300	6000	2.3 (customizable)	13.9
SMG-SF-8000	450	230	112	1/2	×	×	×	×	400	8000	1.75 (customizable)	15.1
SMG-SF-10000	465	230	120	2	×	×	×	×	2000	10000	1.5 (customizable)	19
SMG-SF-15000	480	230	150	2.5	×	×	×	×	4000	15000	1.3 (customizable)	25
