SMG-QD series

Pneumatic Torque Wrench with High Power-to-Weight Ratio

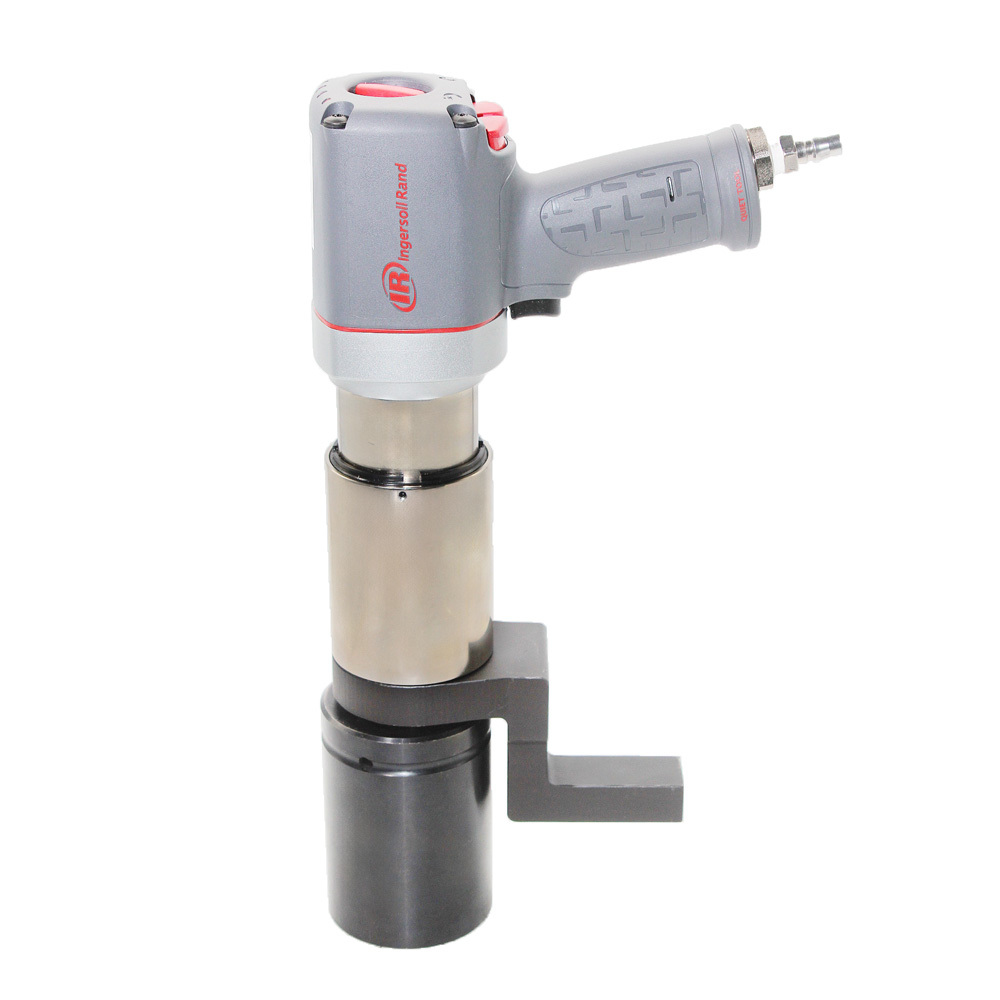

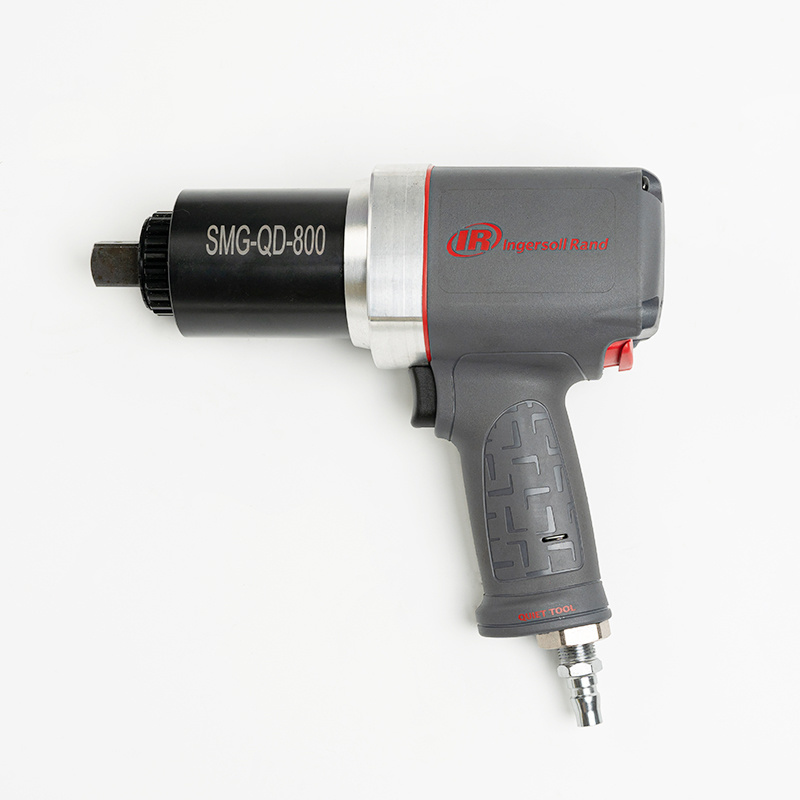

SMG-QD Pneumatic torque wrench series Features： • Ingersoll Rand heavy-duty industrial-grade motors guarantee continuity of torque output and long-term stability of motor power, providing a reliable and durable solution for mounting and loosening heavy-duty nuts. • Smooth continuous flow of controlled torque • Lightweight ergonomic pistol grip design reducing operator strain and injury, resulting in increased productivity • CEJN or Japanese SMC world-class brand FRL • Torque accuracy ±4%, repetition accuracy ±2%

Category:

Pneumatic torque wrench

E-mail:

brian@smgtorcwrench.com

Message

Introduction

Introduction of pneumatic torque wrench series

　　Pneumatic gun torque wrenches SMG-QD series are used in industrial environments where precision and high volume loading and unloading are required. The precision high-speed gearbox design provides a stable and powerful continuous torque output.

　　Suitable for high efficiency applications.

　　The SMG-QD utilizes a precision Marathon motor to ensure that the air motor output performance remains normal under long working hours.

　　SMG-QD series can be supplied in standard, lance and high speed series according to customer's needs.

Pneumatic Series Main Functions

　　Precision torque:

　　● Accurately displays the pressure required for preset torque

　　● Removable customized counterforce arm design fits virtually any wheel configuration

　　● Dynamic display of real-time torque throughout the entire process

　　● Accuracy ±5%, Repeatability ±2% (requires correct air supply pressure and volume)

　　● Uses a multi-pole gearbox for unrivaled reliability and consistent output.

　　● Extremely good power-to-weight ratio. Wider torque range for multiple work stations.

　　● Multi-pole gearboxes for unrivaled reliability. Uniform and stable output

　　● Pistol type design, ergonomic and lightweight.

　　● Equal torque output in forward and reverse directions

　　● Low noise, non-shock torque output

Product parameters

Model	Min.torque (N.M)	Max.torque (N.M)	Quadrilateral axis (")	D (mm)	L (mm)	H1 (mm)	H2 (mm)	R1 (mm)	R2 (mm)	Weight (kg)	Max speed (rpm)
SMG-QD-100	30	100	3/4	60	170	70	185	56	99	4	50
SMG-QD-200	40	200	3/4	65	200	70	185	58	104	4.2	41
SMG-QD-800	150	800	3/4	70	225	70	185	60	108	4.5	33
SMG-QD-1000	200	1000	3/4	74	250	70	185	62	112	4.8	28
SMG-QD-1500	300	1500	1	76	260	70	185	70	130	5.2	21
SMG-QD-2000	400	2000	1	76	260	70	185	70	130	5.5	15
SMG-QD-3000	450	3000	1	93	340	70	185	80	150	7.5	10
SMG-QD-4000	500	4000	1-1/2	97	340	70	185	80	150	9.5	7
SMG-QD-6000	600	6000	1-1/2	105	380	70	185	93	158	14	5
SMG-QD-8000	800	8000	1-1/2	113	380	70	185	93	158	16	4
SMG-QD-12000	1200	12000	1-1/2	120	330	70	185	95	153	20	3
