SMG-SF-3000 Brushless electric torque wrench


Keyword: Electric torque wrench with quick adjust torque Settings
Summary:The torque range can reach 20000NM, smooth operation, simple torque adjustment, easy operation, no vibration and shock, low noise, the operator is not affected by reverse torque, low labor intensity

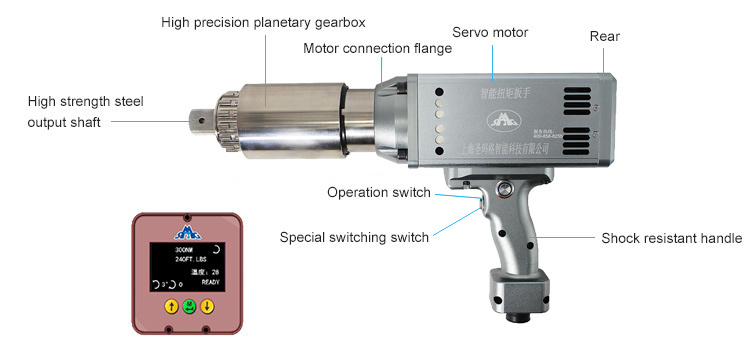

  • SMG-LD servo wrench product introduction

      The SMG-SF series is a new generation of brushless CNC electric torque wrenches, this series adopts a new generation of brushless motors, no carbon brushes, maintenance free, more durable, connecting to standard electric power can start to work, and meet the needs of high precision, high strength as well as safe work.

      The SMG-SF series utilizes a planetary gear reduction system with a high power output ratio.

      The SMG-SF series uses a color control panel to precisely set torque, and provides users with smooth and continuous torque control output through a high-performance digital control module. High accuracy of ±4% and angle function is supported.

    SMG-LD servo wrench series main functions

      Precise torque:

      ● Solve the sparking problem of brushed motor in principle, the machine can run efficiently and stably, and extend the service life of carbon brushes to a greater extent.

      ● Stable torque output, not easily affected by voltage fluctuations and long distance cables, suitable for construction site applications.

      ● Precise torque control: built-in sensor closed-loop control. Accuracy of 5%, repeatability of 2%.

      Intelligent control:

      ● Digital display: real-time display of torque, revolutions and laps.

      ● Arbitrary torque setting: torque digital 1Nm adjustment and display of torque and wrench work status parameters with double overload protection, electronic torque control system and torque overload clutch design, effectively improve the service life of transmission components and carbon brushes

      ● Torque range can be set to any value within the range of torque

      ● gear adjustment: intelligent programming, can set the common torque value of N gears, convenient and fast operation

      ● Two working modes: torque + angle mode

      ● Fault alarm: motor overheating alarm, system fault alarm, operation error LED flashing alarm.

      ● Upper limit torque automatic stop function: When the upper limit torque is exceeded, the system will set the automatic stop function.

      ● Classified management: password input management for level 1, 2 and 3 administrators.

      ● Stable torque output, not easily affected by voltage fluctuation and long distance cable, suitable for construction site application.

      ● Continuous rotation without impact, the wrench stops automatically when it reaches the pre-set torque value, which is much more efficient than intermittent-driven hydraulic wrenches.

      ● Supports generator power supply

      ● Use of multi-stage gearbox, high reliability and stability.

      ● Supports multi-language operation mode

      ● 110V-220V AC power, no need for external pumping station and piping.

      ● Overheating protection function

      ● Standard counterforce arm, optional counterforce arm

      ● Anti-reaction force arm locking to realize unloading function


      ● Data export: support WIFI, USB way to export data (working torque, angle, speed)

      ● Communication: optional Bluetooth module or WIFI module, support for connecting to the upper computer through the Internet of Things control, EMS management system docking

      ● Storage: Built-in memory card, can store up to 5000 items, through WIFI, USB export backup

      ● Optional Bluetooth module or WIFI module, torque gateway system, support through the Internet of Things connected to the host computer system.

    SMG-LD servo wrench series configuration

      ● Electric Torque Wrenches

      ● Standard Reaction Arms

      ● Operator's Manual

      ● Premium Carrying Case



    Electric servo torque wrench SMG-SF series product parameters

    ModeA
    (mm)
    B
    (mm)
    C
    (mm)
    Quadriateral
    axis (")
    E/F/G
    (mm)
    H
    (mm)
    Min.torque
    (N.M)
    Max.torque
    (N.M)
    Speed
    (r/min)
    Weight
    (kg)
    SMG-SF-30170 150 60 1/2Customized60 30 150 1.5
    SMG-SF-100200 150 60 1/2×60 20 100 100
    SMG-SF-400250 190 60 1/2×65 15 350 10-120
    SMG-SF-800382 230 74 3/4×90 50 800 5.9
    SMG-SF-2000405 230 80 ×90 100 2000 3.1 7.5
    SMG-SF-3000410 230 94 ×90 150 3000 2.3 10.2
    SMG-SF-4000420 230 98 11/2×90 200 4000 1.7 11.5
    SMG-SF-6000435 230 105 11/2×90 300 6000 1.4 13.9
    SMG-SF-8000450 230 112 11/2×90 400 8000 1.1 15.1
    SMG-SF-10000520 120*2120 ×Customized2000 10000 19
    SMG-SF-16000580 120*2128 ×Customized2200 16000 1.7 32
    SMG-SF-18000620 120*2128 21/23×Customized2400 18000 1.5 34
    SMG-SF-20000660 120*2135 21/23×Customized2800 20000 1.4 38

    If the above parameters may be slightly adjusted, the factory parameters prevail.
