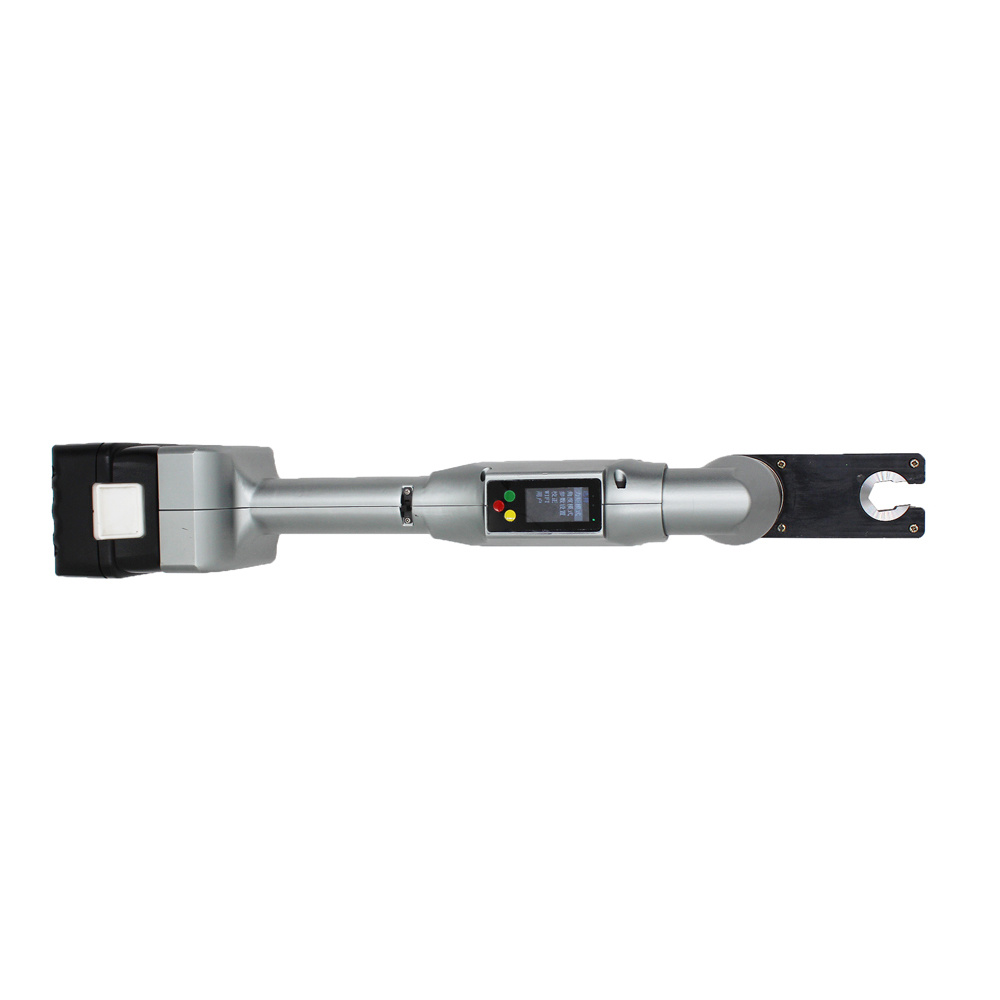

SMG small torque wrench


Keyword: Precise torque wrench without reaction arm
Summary:Shanghai SMG intelligent Technology Co., Ltd. adopts an advanced servo drive integratedmachine with independent intellectual property rights, and a small torque wrench manufacturedwith independent intellectual property rights intelligent drive as the power. it has advantagessuch as high torque accuracy, easy operation, no need for reaction arms, data export, andInternet of Things use

Category:


  •   Shanghai SMG Intelligent Technology Co., Ltd. adopts an advanced servo drive integrated machine with independent intellectual property rights, and a small torque wrench manufactured with independent intellectual property rights intelligent drive as the power. It has advantages such as high torque accuracy, easy operation, no need for reaction arms, data export, and Internet of Things use.

      Mainly used for the assembly and production of automobiles, new energy batteries, automotive components, electric motorcycles, electrical components, and other fields

    Function

      1. Arbitrary torque setting: Adjust the torque to 1Nm to increase or decrease

      2. Gear adjustment: intelligent programming, can set N gears of commonly used torque values, convenient and fast operation

      3. Precision torque control: Built in sensor closed-loop control. Torque accuracy ± 5%, repeatability accuracy ± 2%

      4. Digital display: Real time display of torque, speed, number of turns, success and failure, number of working cycles

      5. Fault alarm: overheat alarm, tightening failure alarm, overload alarm

      6. Internet of Things: optional Bluetooth module or WIFI module, torque gateway system, supporting control of upper computer and integration of MES management system through the Internet of Things

      7. Data export:USB export, WIFI export, data cable export

      8. Hierarchical management: Password input management for level 1, 2, and 3 administrators

      9. Automatic recognition: Scan and recognize the identification code of parts using one-dimensional and two-dimensional codes, and input them into the system

      10.Work diary: Tighten the identification number and operator code of the gun (working time, frequency, pass and fail)

    Product parameters

    Model Min.torque(N.M) Max.torque (N.M) Speed(rpm) Weight(kg)
    SMG-Small torque 1 10 140 1.34
    SMG-Small torque 3 20 120 1.50
    SMG-Small torque 10 50 115 1.6
    SMG-Small torque 20 100 100 2.1

    Application Area

    Factory Display
